Home / Bikes /F4 / F4 RC

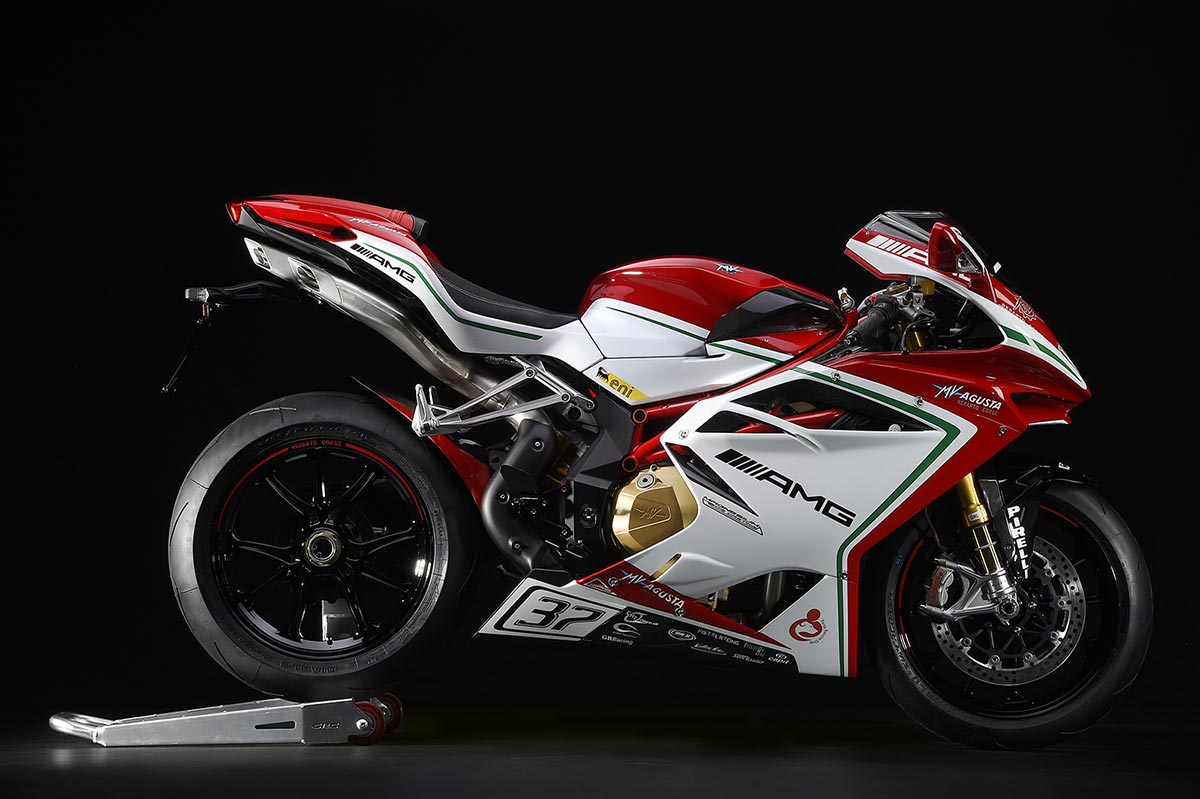

F4 RC

mv-agusta-f4-rc

The courage of far-sighted technical choices. The allure of a brand with a unique history. And: the triumphs in the supersport category. experience and progress, race by race, with the ultrafast derivatives of series-production bikes.

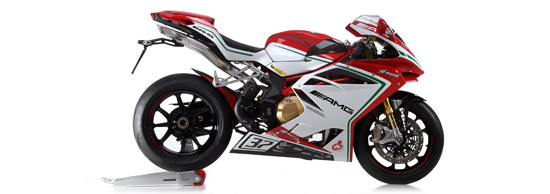

Colours

The new F4 RC is limited to 250 units and each is numbered and supplied with a certificate, the bike includes a “ready to race” component kit with everything needed to configure the bike to be used exclusively on race circuits.

F4 RC

  • WITH ABS BOSCH 9 PLUS RACE
  • RLM (REAR WHEEL LIFT-UP MITIGATION)
  • EAS 2.0
MV Agusta - F4 RC - Engine

Engine

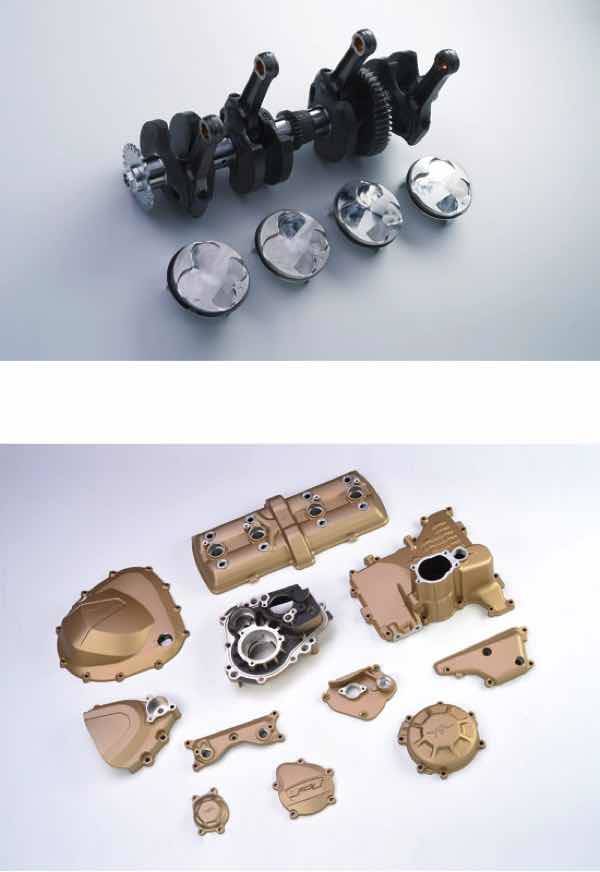

The 4-cylinder Corsa Corta engine with central timing chain and radial valves has undergone a series of modifications aimed at reducing the already-low overall weight and boosting performance.

This compact power unit is characterised by a 79 mm bore and a 50.9 mm stroke. Hand-assembled to ensure optimisation of all components and maximum uniformity among the 250 F4 RC bikes that will be coming off the production line, each motorcycle features radial valves, a technical tradition that began with the very first F4 engine. Those same valves, both intake and exhaust, are each moved by a spring to reduce total moving masses and make it easier to achieve the extremely high RC-standard engine revs.

Already redesigned for the most recent F4 version, the lubrication circuit ensures outstanding reliability whatever the riding conditions, even in the most demanding situations so typical of racing. In order to further reduce weight, MV Agusta has employed a series of components in magnesium alloy, a material used, most importantly, for the cylinder head cover yet also on the clutch, chain, removable gearboxselector, labyrinth blow-by, alternator, ABS pick up sump and lubricating filter and oil duct support flange covers. All-titanium bolts and screws, which have saved 1.1 kg, sharpen the personality of the F4 RC further, giving the technical content a decidedly racing flavour.

And, as you’d expect from a real Superbike, the quest to lighten the machine has gone much further: pistons, rods, and crankshaft have all been designed to be as light as possible. Meticulous work has been carried out on all internal steel parts, including numerous gear components and, of course, the camshafts, all of which have been given a thorough overhaul using sophisticated machining tools to remove, quite literally, every redundant gram. The head features new intake and exhaust ducts that, together with all the other changes, have increased maximum power further to 205 hp at 13,450 rpm (212 hp on the kit version with exhaust system and dedicated control unit) against a torque of 115 Nm at 9300 rpm.

As stated, the intake has been modified by designing new ducts. The 50 mm throttle bodies have been integrated in the TSS variable-length intake system. The injectors are arranged on two banks: the upper one uses specific Magneti Marelli components that offer high performance in terms of fuel delivery; the lower bank instead features 4 Mikuni injectors. To maximise efficiency, silicone cooling circuit hoses have been employed.

MV F4 Rc electronics

Electronics

The 4-cylinder Corsa Corta engine with central timing chain and radial valves has undergone a series of modifications aimed at reducing the already-low overall weight and boosting performance.

This compact power unit is characterised by a 79 mm bore and a 50.9 mm stroke. Hand-assembled to ensure optimisation of all components and maximum uniformity among the 250 F4 RC bikes that will be coming off the production line, each motorcycle features radial valves, a technical tradition that began with the very first F4 engine. Those same valves, both intake and exhaust, are each moved by a spring to reduce total moving masses and make it easier to achieve the extremely high RC-standard engine revs.

Already redesigned for the most recent F4 version, the lubrication circuit ensures outstanding reliability whatever the riding conditions, even in the most demanding situations so typical of racing. In order to further reduce weight, MV Agusta has employed a series of components in magnesium alloy, a material used, most importantly, for the cylinder head cover yet also on the clutch, chain, removable gearboxselector, labyrinth blow-by, alternator, ABS pick up sump and lubricating filter and oil duct support flange covers. All-titanium bolts and screws, which have saved 1.1 kg, sharpen the personality of the F4 RC further, giving the technical content a decidedly racing flavour.

And, as you’d expect from a real Superbike, the quest to lighten the machine has gone much further: pistons, rods, and crankshaft have all been designed to be as light as possible. Meticulous work has been carried out on all internal steel parts, including numerous gear components and, of course, the camshafts, all of which have been given a thorough overhaul using sophisticated machining tools to remove, quite literally, every redundant gram. The head features new intake and exhaust ducts that, together with all the other changes, have increased maximum power further to 205 hp at 13,450 rpm (212 hp on the kit version with exhaust system and dedicated control unit) against a torque of 115 Nm at 9300 rpm.

As stated, the intake has been modified by designing new ducts. The 50 mm throttle bodies have been integrated in the TSS variable-length intake system. The injectors are arranged on two banks: the upper one uses specific Magneti Marelli components that offer high performance in terms of fuel delivery; the lower bank instead features 4 Mikuni injectors. To maximise efficiency, silicone cooling circuit hoses have been employed.

MV Agusta - F4 RC - brakes

Brakes

The braking system confirms the degree of excellence seen on the F4 RR: a pair of 320 mm front discs with steel braking rotors and monobloc Brembo M50 callipers with dedicated radial pump provide unbeatable performance, weight and stiffness.

At the rear a 4-piston calliper and 210 mm disc are mounted.

MV Agusta - F4 RC - kit

Weight and Kit

To see just how exclusive the new F4 RC is, just take a look at the figures: to start with, it weighs a full 7 kg less than the F4 RR. And that’s not all: the price includes a complete track riding kit which cuts weight by another 6 kg, pushing total weight savings up to an impressive 13 kg. With the assembly of specific components, such as the titanium Termignoni exhaust system with dedicated control unit, the bike reaches an exceptionally high maximum power of 212 hp at 13600 rpm.

The kit includes:

  • Termignoni exhaust system in titanium, with carbon fibre heat guard;
  • dedicated control unit;
  • carbon fibre rear seat cowl for single-seater use;
  • quick-release tank cap;
  • red anodized Ergal plugs to be applied after removal of rear view mirrors;
  • certification demonstrating that each motorcycle belongs to a limited edition of just 250 units;
  • personalised motorcycle cover;
MV Agusta - F4 RC - frame

Frame & Suspension

Throughout the history of the F4, the frame has played a vital role: devised to combine the advantages of different design solutions, its success gradually saw it extended to the entire MV Agusta range. On the F4 RC the CrMo tubular steel trellis frame is TIG-welded by hand; the lower part is finished off with aluminium alloy plates on which a seat has been machined to insert the singleside swingarm pin, the fulcrum of which can be height-adjusted. Compared to the F4 RR, basic measurements remain unaltered: 1,430 mm wheelbase, steering head angle (23.5°) and single-sided swingarm length (565 mm).

The choice of suspension set-up shows the extent to which the F4 RC has been inspired by racing - and built to race. Fork, rear shock and steering damper are, in fact, mechanical instead of electronic : more detail is , the front fork is a TiN-coated Ohlins USD NIX 30 with separate hydraulic adjustment of compression (left stanchion) and rebound (right stanchion), plus spring pre-load adjustment. At the rear there is an Ohlins TTX 36 shock absorber with piggyback reservoir: manual compression/rebound adjustment is effected via the anodised aluminium knobs. Similarly, the steering damper, also made by Ohlins, can be mechanically adjusted too. Thanks to the absence of the control unit and actuators needed on electronically controlled suspension, the weight of the F4 RC has been reduced even further.

The unique components of this version are further highlighted by widespread adoption of carbon fibre on the side panels, lower fairing, rear mudguard and front mudguard spoiler, upper and lower chain guard, the upper airbox section and the left and right intake covers.

Made of forged aluminium alloy, the wheels have been designed and built exclusively for this model. Even the battery - a light lithium (Li-Po) 12.8 V 4 Ah unit - is model-specific. Foot controls are also new: peg positions are adjustable and the shift lever features a sensor for fast gear changes.
